When the Screw and Nut Wear, Motion Becomes Less Predictable
NNG evaluates Acme lead screws and nuts, identifies practical repair or replacement options and helps restore reliable movement in CNC machines and industrial equipment.
- Legacy Equipment
- Hard-to-Source Components
- Repair or Replacement Options
INSPECTION & EVALUATION | LEAD SCREW REPAIR | NUT SERVICE | LEGACY EQUIPMENT | REPLACEMENT SOURCING | TECHNICAL SUPPORT

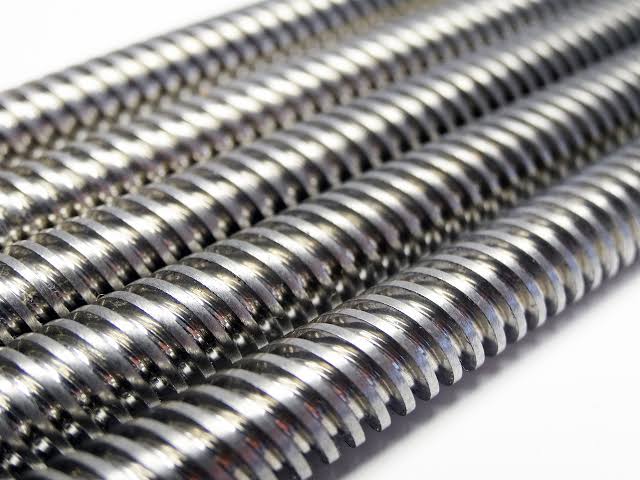

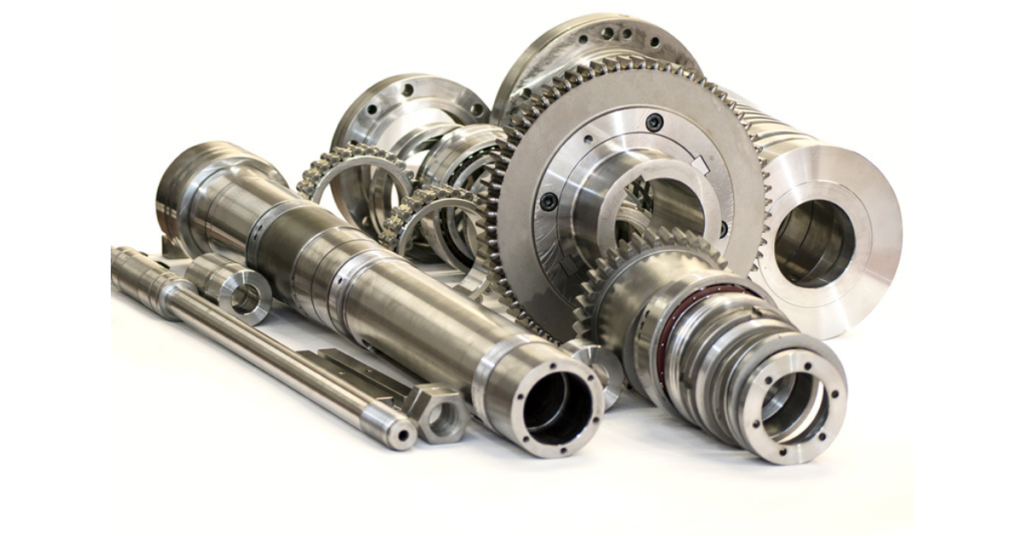

Acme Lead Screw & Nut Repair Services
Screw Inspection & Evaluation
Inspection of thread condition, wear patterns, straightness, journals and visible damage.
Lead Screw Nut Service
Evaluation, repair, rebuilding or replacement support for Acme nuts and related mating components.
Journal Repair & Machining
Machining and repair support for worn or damaged journals, ends and mounting surfaces.
Thread Condition Review
Evaluation of thread wear, damage, fit and operating condition to determine serviceability.
Replacement & Remanufacturing Support
Assistance sourcing or producing replacement screws and nuts when the original assembly is obsolete or beyond practical repair.
Related Linear-Motion Support
Support for related components, including bearings, mounts, seals and associated motion-system parts where applicable.
Measure → Inspect → Evaluate → Approve → Repair or Replace → Verify
Technical Support for Current and Legacy Motion Systems
Older machines and specialized equipment may rely on lead screws that are no longer readily available from the original manufacturer. NNG evaluates the condition of the screw and nut, available technical information and replacement options so customers can make a more informed decision about repair, remanufacturing or replacement.
Keep the machine moving when the original component is hard to find. Repair and replacement options based on the actual assembly.
SCREWS & NUTS WE SUPPORT
Lead Screw Assemblies We Service
NNG supports a range of lead screw and nut assemblies used in CNC machines and industrial equipment. Service availability depends on the screw type, dimensions, condition, material, technical information and operating requirements.
Support for Legacy Equipment
NNG may assist with obsolete or discontinued lead screw assemblies when drawings, measurements, repairable components or qualified replacement options remain available.
Application Review
Depending on the project, NNG may review machine information, screw dimensions, loading requirements, travel length, nut configuration and available technical documentation.
Screw Types
- Acme lead screws
- Trapezoidal lead screws
- Feed screws
- Jack screws
- Power screws
Nut Types
- Standard Acme nuts
- Split nuts
- Anti-backlash nuts
- Flanged nuts
- Custom nut configurations
Common Applications
- CNC machine tools
- Industrial actuators
- Positioning systems
- Lifting and adjustment mechanisms
- Legacy production equipment
The Right Path...
The right option depends on the condition of the screw and nut, machine requirements, replacement availability, repair history and production priorities.
Repair
Address localized wear or damage when the screw and related components remain serviceable.
Rebuild
Restore the assembly through machining, nut service and replacement of related components where practical.
Replace
LEAD SCREW SERVICE QUESTIONS
What Customers Need to Know
Answers to common questions about Acme lead screw repair, nut service, replacement and what to send with a request.
What information should I provide?
Send the machine manufacturer and model, screw dimensions, thread form, pitch, travel length, nut details, photos, drawings and a description of the operating problem.
Can NNG repair an obsolete Acme lead screw?
Support may be possible when the screw can be measured, inspected or matched to existing drawings and replacement requirements.
Can the nut be repaired without replacing the screw?
That depends on the condition of the screw threads, nut, fit and operating requirements. Both components should be evaluated before a service recommendation is made.
Can NNG produce a replacement screw and nut?
Replacement support may be available based on dimensions, drawings, material requirements, thread specifications and application needs.
What causes lead screw and nut wear?
Common causes may include contamination, inadequate lubrication, misalignment, excessive loading, normal wear and damage to the thread surfaces.
How long does service take?
Timing depends on the size, condition, measurements required, machining scope, replacement-part availability and approval timing.
Need Acme Lead Screw or Nut Service?
Send the machine details, screw dimensions, thread information, photos, drawings and required timing. NNG will review the information and help identify the most practical repair or replacement path.
